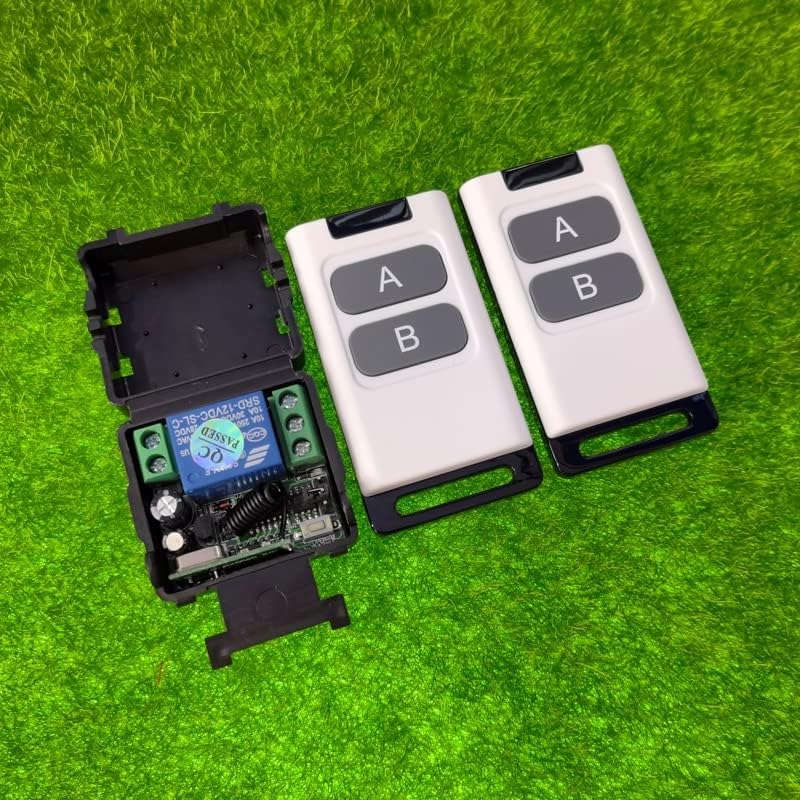

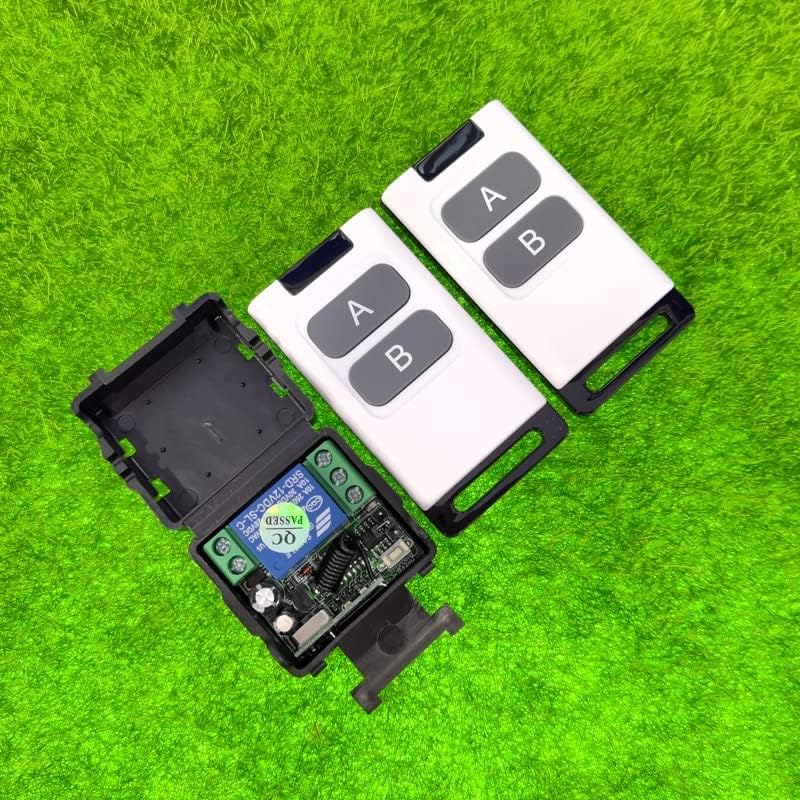

Inter-lock/Latched 315/433MHZ 12V 1CH 10A Wireless Remote Control Switch System Transmitter & Receiver Relay Smart House - (Color: B 315MHZ)

Specifications:Operating Voltage:DC12VOperating Current:≤ 6MaOperating Frequency:315,433 MHzOperating Temperature:-40°C ~ +80°CReceiver Sensitivity:≥-105dBmOutput Voltage:AC / DC (optional)Output Current:≤ 10ACode :Learning code .(jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )Size: 35MM*32MM*17MMOutput working way:Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control )Learning Method:Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.Remove code:press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully .Package includes:A:1x Receiver(with cover)1x Transmitter(with battery)B:1 x Receiver(with cover)2x Transmitter(with battery)C:1x Receiver(with cover)Item specifics:Support app: NoFrequency: 315mhz /433mhzChannel: 1Package: NoModel number: AK 12V-1CHWireless communication: RFUse: UniversalOrigin: Mainland China

• Color: B 315MHZ
• Package Includes: A: | 1x Receiver(with cover) | 1x Transmitter(with battery) | B: | 1 x Receiver(with cover) | 2x Transmitter(with battery) | C: | 1x Receiver(with cover)
• Support app: No
• Frequency: 315mhz /433mhz
• Channel: 1
