TOPGREENER Motion Sensor Switch, PIR Sensor with Ambient Light Level, Occupancy & Vacancy Modes, No Neutral Required, Ground Wire Required, 150W LED/CFL, Single Pole, TDOS5-JM-W-6PCS, White, 6 Pack
Product details
| Management number | 210096774 | Release Date | 2026/04/02 | List Price | $28.00 | Model Number | 210096774 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Passive Infrared (PIR) sensor detects motion with 180° field of view to automatically turn lights ON/OFF based on the occupancy or vacancy in a room, Wall Plate Included
- Passive Infrared (PIR) sensor detects motion with 180° field of view to automatically turn lights ON/OFF based on the occupancy or vacancy in a room
- Universal wiring design featuring interchangeable hot and load wires to make installation easier; no longer second guess which wire goes where

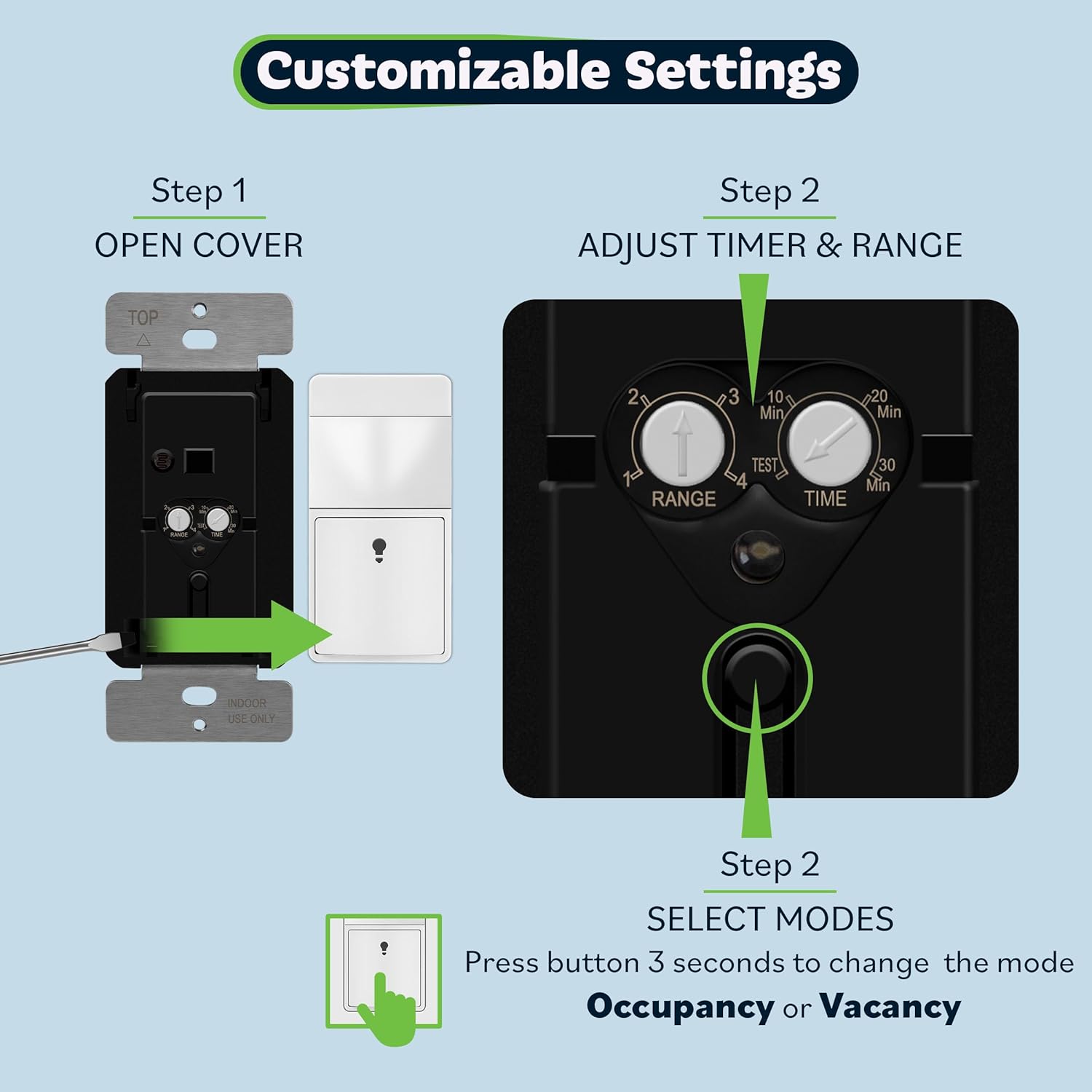

- Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; adjustable time delay options: 15 sec (Test), 5 min, 10 min, 20 min, 30 min
- 6 pack; white color; 1200 square feet max coverage area, 180-degree field of view; no neutral wire required; 5A, 120VAC@60Hz; 1500W Tungsten, 150W LED/CFL, 1/6HP motor rating; #12-14 AWG (copper wire only); clamp-type wiring; flammability UL 94 V2 rating; single-pole only; device dimensions: 2.5" W x 4.5" H x 2.5" D; UL listed; 1-year warranty
| UPC | 883951454807 |
|---|---|
| Color | White |
| Model | TDOS5-JM-W-6PCS |
| Wattage | 1500 watts |
| Terminal | Screw |
| Brand Name | TOPGREENER |
| Unit Count | 8.00 Count |
| Switch Type | Motion Sensor Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | TOPGREENER |
| Material Type | Plastic |
| Mounting Type | Ceiling Mount |
| Connector Type | Clamp |
| Control Method | Sensor |
| Operation Mode | Occupancy (OCC), Vacancy (VAC) |
| Controller Type | Remote Control |
| Contact Material | Copper |
| Operating Voltage | 120 Volts (AC) |
| Specification Met | UL |
| Included Components | Battery |
| Number of Positions | 6 |
