Relation, Tuple, and Attribute

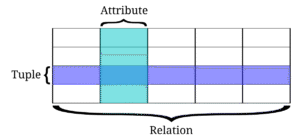

The Relational Model is a core concept in database systems that represents data in the form of tables. Each table, known as a relation, consists of tuples (rows) and attributes (columns). Let’s break down each term in detail:

1. Relation

A relation in the relational model is essentially a table with rows and columns. It represents a collection of related data items and is used to store information about a particular type of entity.

• A relation is given a name (e.g., Student, Employee, Course).
• Each relation contains tuples (rows) representing individual records.
• The structure of the relation is defined by its attributes (columns).

Example:
Student Relation:

2. Tuple

A tuple is a single row in a relation. It represents one instance or one record of the entity the relation describes.

• Each tuple contains values for all the attributes defined in the relation.
• Tuples are also known as records or rows.

In the example above:

A relation may contain many tuples, each representing different entities (students, employees, etc.).

3. Attribute

An attribute is a column in the relation. Each attribute represents a specific property or field of the entity.

• Attributes are defined by names and data types (e.g., integer, string).
• The set of attributes defines the structure or schema of the relation.

In the Student relation:

• Roll_No, Name, Age, and Department are the attributes.
• Each attribute describes a property of the student (e.g., their name or age).

Summary Table
